Drawing "Form Plan" - Alfa Romeo - 33 STRADALE - 1967

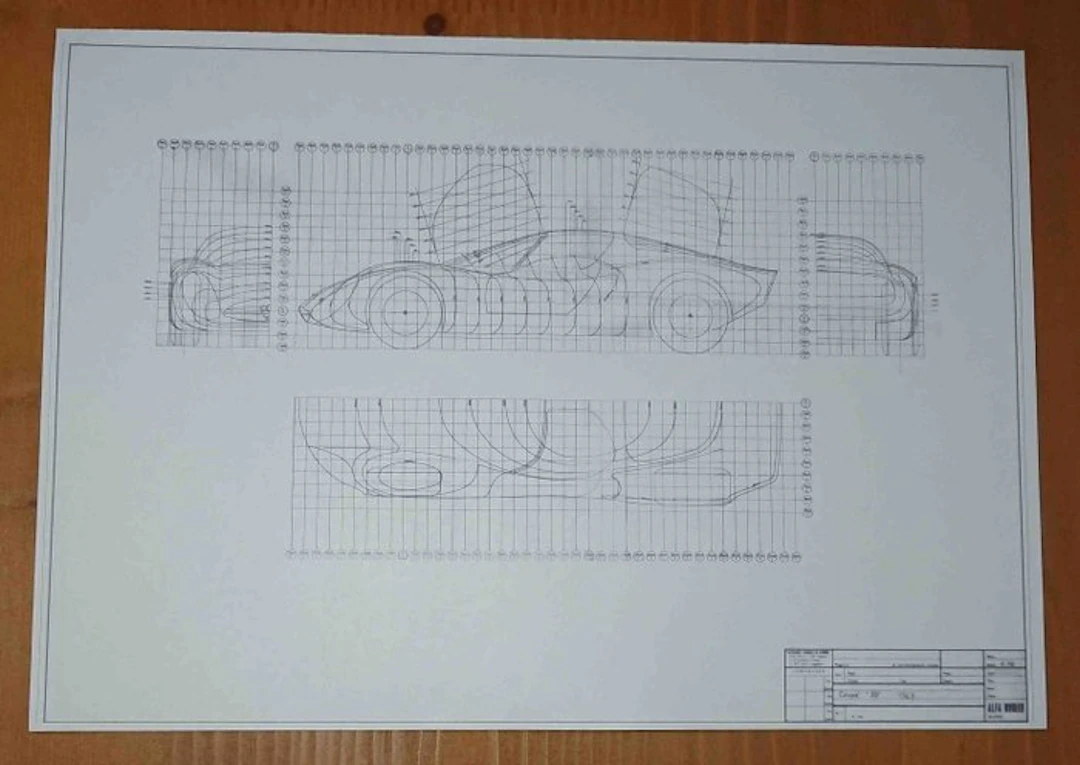

Copy on paper of the original Alfa Romeo drawing “Piano di forma” scale 1:10, printed in A1 format (84 cm x 59.4 cm), of the 33 Stradale, year 1967 (original name 33 Coupe). In photos 1 and 2 of this lot the drawing has been printed on an A3 sheet only as an example for the photos. Print condition: perfect. With this drawing, the coachbuilders first produced a 1:5 scale model for an aesthetic evaluation in the three dimensions of the project laid out on paper. The construction of the model was done by cutting the various sections in plywood and assembling them with interlocks, filling the gaps, puttying, painting and adding some details such as headlights and wheels. Subsequently, any stylistic modifications were made and, in the end, a 1:1 scale model was built, used by the bodyworkers to shape the aluminum sheets. The drawing is supplied rolled, to avoid creases that would otherwise be visible if one wished to frame it, with careful packaging and shipping in Europe, excluding Great Britain.

估價:$1.12
